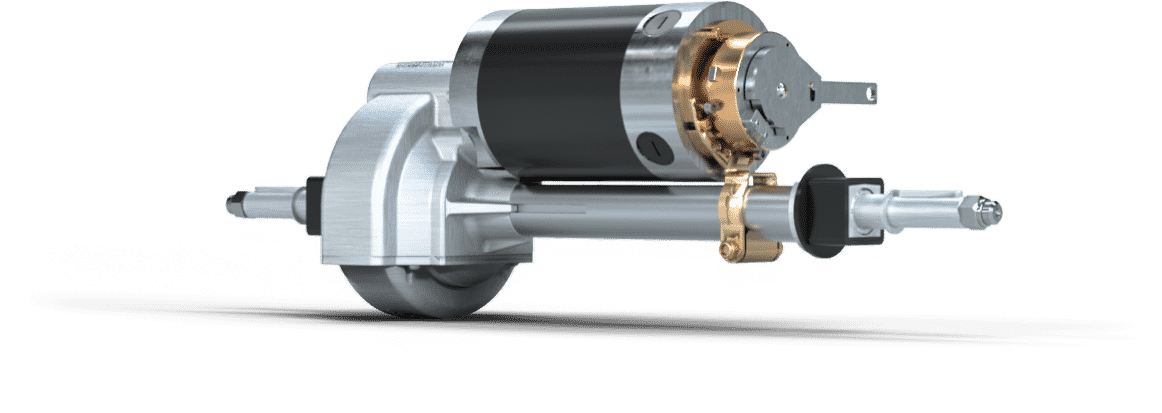

Start Configurator The MARK 400 is the industry standard medium duty electric transaxle. ASI was the first company to design and sell a fully enclosed transaxle, and it is our most versatile product, being sold across all our markets. The transaxle drive motor has various mounting widths and multiple motor, ratio and brake options. It is suitable for outdoor use.
MARKETS
- Floor Care
- Medical Mobility – Scooter
- Material Handling
- Outdoor Power Equipment
FEATURES
- Single-piece casting:
Improved gear alignment; quiet operation - Reduction ratios:
From 14:1 to 21:1 - Fully enclosed axle:
Mounting width flexibility - Optional components:
Electromagnetic power-off brake, connectors, brake cover, IP67 conformity - Widths:
9.37 in (238 mm) to 19.32 in (491 mm): custom widths available - Motors:
Permanent magnet DC 2-pole, 3.28 in (83.2 mm) diameter, or 4-pole, 3.98 in (101 mm) diameter, brushless DC option available - Voltage:
24V to 36V DC - Axle configurations:
Custom
PERFORMANCE EXAMPLES
High Torque (4 inch – 21:1 @ 24V)
| No Load | Typical | High | |
|---|---|---|---|
| Torque, Nm | 0.00 | 28.35 | 94.49 |
| RPM | 112 | 95 | 56 |
| Current, Amps | 2.0 | 16.0 | 48.6 |
| Power Out, Watts | 0 | 283 | 554 |
| Power In, Watts | 48 | 383 | 1165 |
| Efficiency | 0% | 74% | 48% |
High Speed (3 inch – 18:1 @ 24V)
| No Load | Typical | High | |
|---|---|---|---|
| Torque, Nm | 0.00 | 24.84 | 82.80 |
| RPM | 215 | 183 | 108 |
| Current, Amps | 1.9 | 25.6 | 81.0 |
| Power Out, Watts | 0 | 476 | 933 |
| Power In, Watts | 46 | 615 | 1945 |
| Efficiency | 0% | 77% | 48% |
