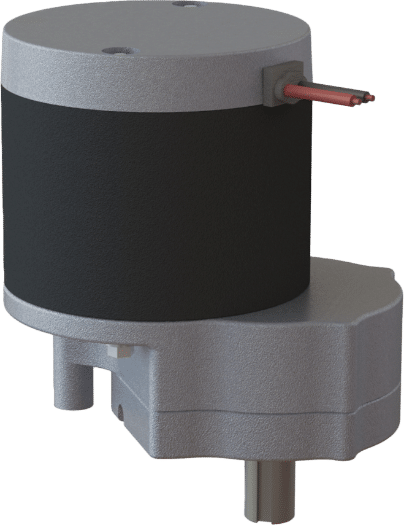

The SD400 is an efficient Geared Scrub Brush Motor with impeccable gear alignment, near-silent operation, and customizable shaft configurations. Engineered specifically for floor care machines, the SD400 Geared Scrub Brush Motor redefines efficiency and precision in cleaning operations.
MARKETS
- Floor Care
FEATURES
- Integral motor casting: Improved gear alignment; quiet operation
- Construction: All ball bearing; high efficiency
- Shaft configuration: Custom up to 20 mm diameter
- Motor: 4-pole, 3.98 in (101 mm) diameter
- Voltage: 24V DC
- Reduction ratio: 10:1
PERFORMANCE EXAMPLE
10:1 @ 24V
| No Load | Typical (Continuous Duty) |
High (65% Duty) |
|
|---|---|---|---|
| Torque, Nm | 0.0 | 5.4 | 10.0 |
| RPM | 251 | 220 | 200 |
| Current, Amps | 1.5 | 7.9 | 14.2 |
| Power Out, Watts | 0 | 125 | 209 |
| Power In, Watts | 35 | 191 | 341 |
| Efficiency | 0% | 65% | 61% |
